Description
Structural Functional Features
- Excellent space utilization through compact design.
- The body has a low height (650 mm) allowing it to be placed on the bench and on the bottom part of the table.
- Easy to control wind and intuitive display of fan level. (maximum 240m3/h)
- Better safe use of chemicals with durability and spark-free BLDC motor.
- The appropriate filter is selected according to the experiment environment. (option)
- Single / Dual arm, arm diameter, and hood are selected according to the usage environment. (option)
Use Convenience Features
- Pre-filter built in to extend other filter life.
- Up to 2 filters can be installed depending on the material used. (option)
※ Example of filter configuration
HEPA Filter for removing dust and carbon filter for removing/neutralizing harmful gas. - Soft wheels for easy movement and fixing.
- Low fan speed notification when fan speed is low.
Examples Of Diverse Applications

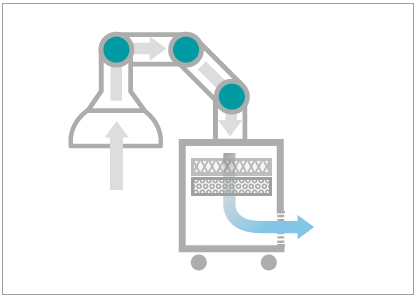

Single Arm

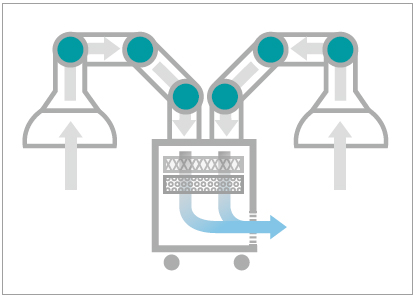

General configuration for 100% suction performance.Dual Arm

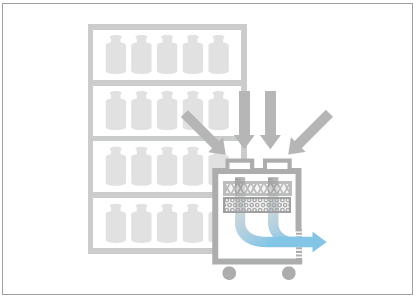

Space-efficient configuration with two hoods used.Harmful gas purifier
Purification of harmful gases and fine dust in the experiment space.

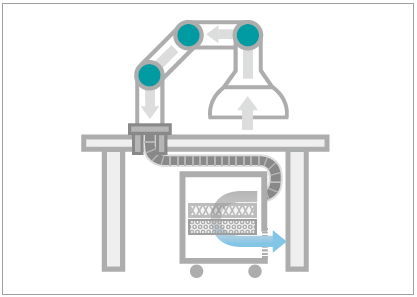

Laboratory table integral structure
Maximal space utilization with placement of the lower part of the testing bench.
Model | EFS-33-50S | EFS-33-50D | EFS-33-75S | EFS-33-75D |
---|---|---|---|---|
Adaptable Arm | Φ50 mm / 2.0 inch 1ea | Φ50 mm / 2.0 inch 2ea | Φ75 mm / 3.0 inch 1ea | Φ75 / 3.0 inch 2ea |
Airflow Rate | 240 m3/h | |||
Noise Level | 60 dB | |||
Electric Requirement | 230V, 50/60Hz, 1.5A | |||
Dimension (W x D x H, mm / inch) | 460 x 460 x 650 / 18.1 x 18.1 x 25.6 | |||
Net Weight (kg / lbs) | 65 /143.3 | |||
Cat. No. | AAHB6312 | AAHB6313 | AAHB6314 | AAHB6315 |
